Lounge Chair and Ottoman
躺椅與腳凳
After Charles and Ray Eames, 1956
仿查爾斯與蕾・伊姆斯，1956

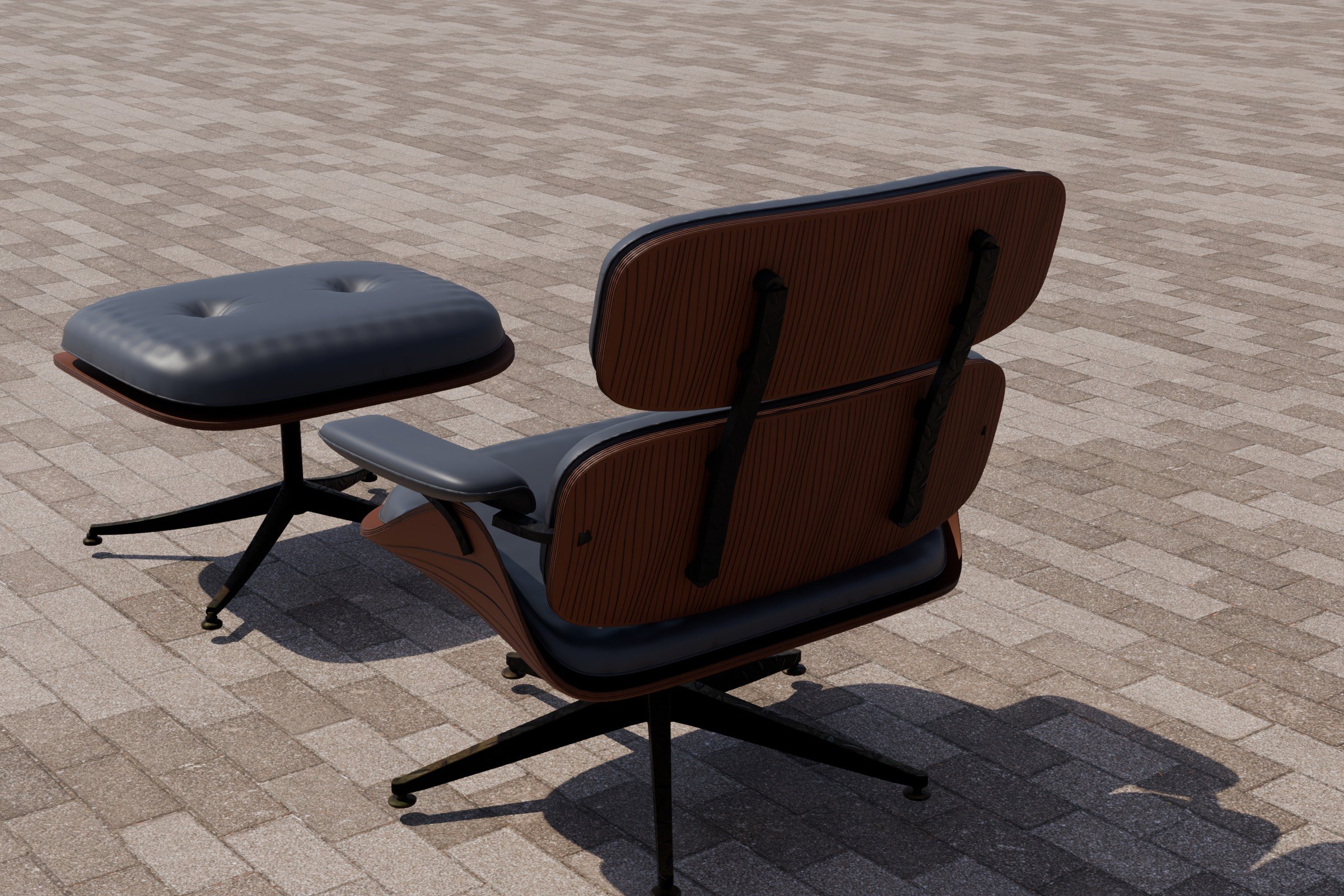

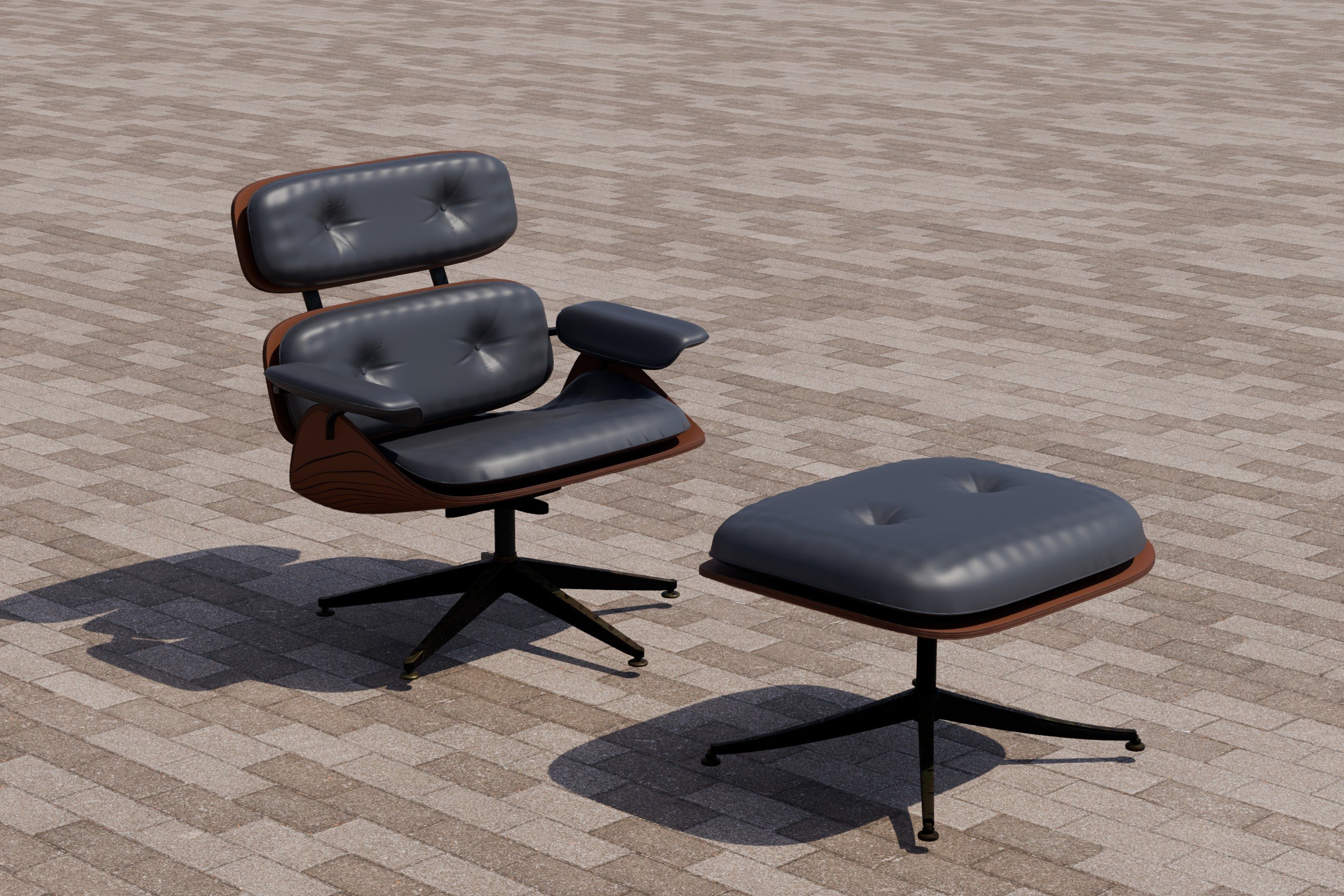

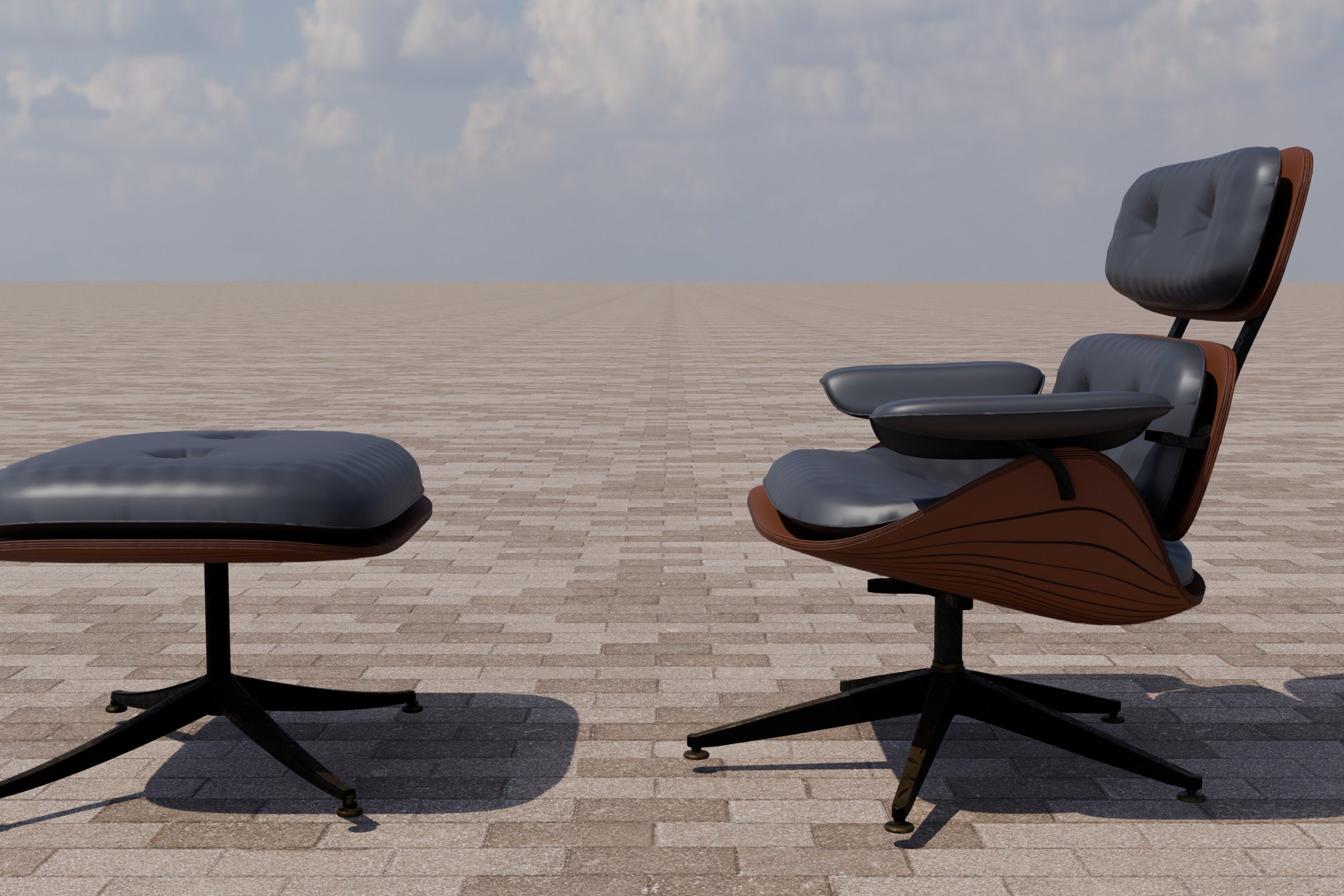

Three separate moulded rosewood shells at a fixed recline, tufted black leather cushions, two die-cast aluminium braces on rubber shock mounts, and a five-star swivel base. The ottoman stands 450 mm in front on its own four-star base.
三片各自分開的模壓玫瑰木殼，固定後仰；拉扣的黑色皮墊；背後兩支壓鑄鋁背架接在橡膠避震座上；五爪旋轉底座。腳凳放在椅子前方 450 mm，配四爪底座。
- Made with製作工具
- Vibe Drawing v9Vibe Drawing v9
- Style性質
- Recreation of a design classic經典家具重現
- Design run設計時間
- 13 minutes13 分鐘
- 3D model3D 模型
- 137 parts137 個部件
Renders
渲染圖
03
3D model
3D 模型
GLB · 4.6 MB
Loading載入中
The 3D model could not be shown in this browser.
這個瀏覽器無法顯示 3D 模型。
Drag to turn · scroll to zoom · right-drag to move拖曳旋轉・滾輪縮放・右鍵拖曳平移
The model as exported, compressed for the web匯出的原始模型，壓縮成網頁格式
The brief
原始需求
As typed, in English.
使用者輸入的原文（英文）。
Design the iconic 1956 Charles and Ray Eames "670 Lounge Chair and 671 Ottoman" set in molded Palisander rosewood veneer plywood and black aniline leather:
1. Separated 3-Shell Construction (CRITICAL): The chair body MUST consist of THREE distinct, physically separated curved plywood shells (headrest shell, lower backrest shell, and seat shell) tilted at a permanent 15-degree recline angle. Do NOT merge them into a single continuous shell.
2. Exposed Structural Hardware: Connect the backrest and headrest shells strictly via two rear black die-cast aluminum back braces (spines) and rubber shock mounts; cantilever the curved upholstered armrests from the seat and mid-back shells.
3. Upholstered Tufting & Base: Removable plush black leather cushions snapped into each wooden shell with subtle button-tufted creases and piping; supported by a 5-star die-cast aluminum swivel base with polished top edges (and a matching 4-star base for the separate Ottoman placed 450mm in front of the chair).
中文翻譯
設計 1956 年查爾斯與蕾・伊姆斯的經典「670 躺椅與 671 腳凳」，材料是模壓巴西玫瑰木（Palisander）貼皮夾板和黑色苯染皮革： 1. 三片分開的殼（關鍵）：椅身必須是三片各自獨立、實際分開的彎曲夾板殼（頭枕殼、下背殼、座殼），固定後仰 15 度。不要合成一整片殼。 2. 外露的結構五金：背殼和頭枕殼只靠背後兩支黑色壓鑄鋁背架（脊柱）和橡膠避震座連接；彎曲的軟包扶手從座殼和中背殼懸挑出來。 3. 軟包拉扣與底座：可拆的黑色厚皮墊扣在每片木殼上，帶細微的拉扣摺痕和滾邊；下方是頂緣拋光的五爪壓鑄鋁旋轉底座（另外的腳凳放在椅子前方 450 mm，配同款四爪底座）。
